안전밸브 소요분출량(증기ㆍ가스) 계산
1단계
화학설비의 내부 액체 접촉 면적 계산
2단계
DATA 입력
3단계
소요 분출량 계산
1단계 : 화학설비의 내부 액체 접촉 면적 계산

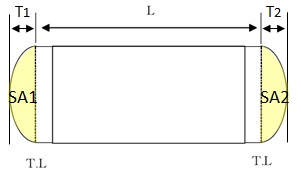

원통형 용기인 경우
직육면체 용기인 경우
내경(Di)
mm
L
mm
T1
mm
T2
mm
동체면적(π×Di×L)
㎡
S1면적
㎡
S2면적
㎡
내부 액체 접촉 면적 (Aw)
㎡
A (세로 길이)
mm
B (가로 길이)
mm
L (동체 길이)
mm
내부 액체 접촉 면적 (Aw)
㎡
2단계 : DATA 입력
